Transition link

L Series

  • Manufactured according to: EN 1677-4
  • 4 - 56 t Working Load Limit (WLL)
L Series
Specifications
Article Matching Chain (mm) Dimension (mm) Weight (kg) / Approx WLL* (t) / Max

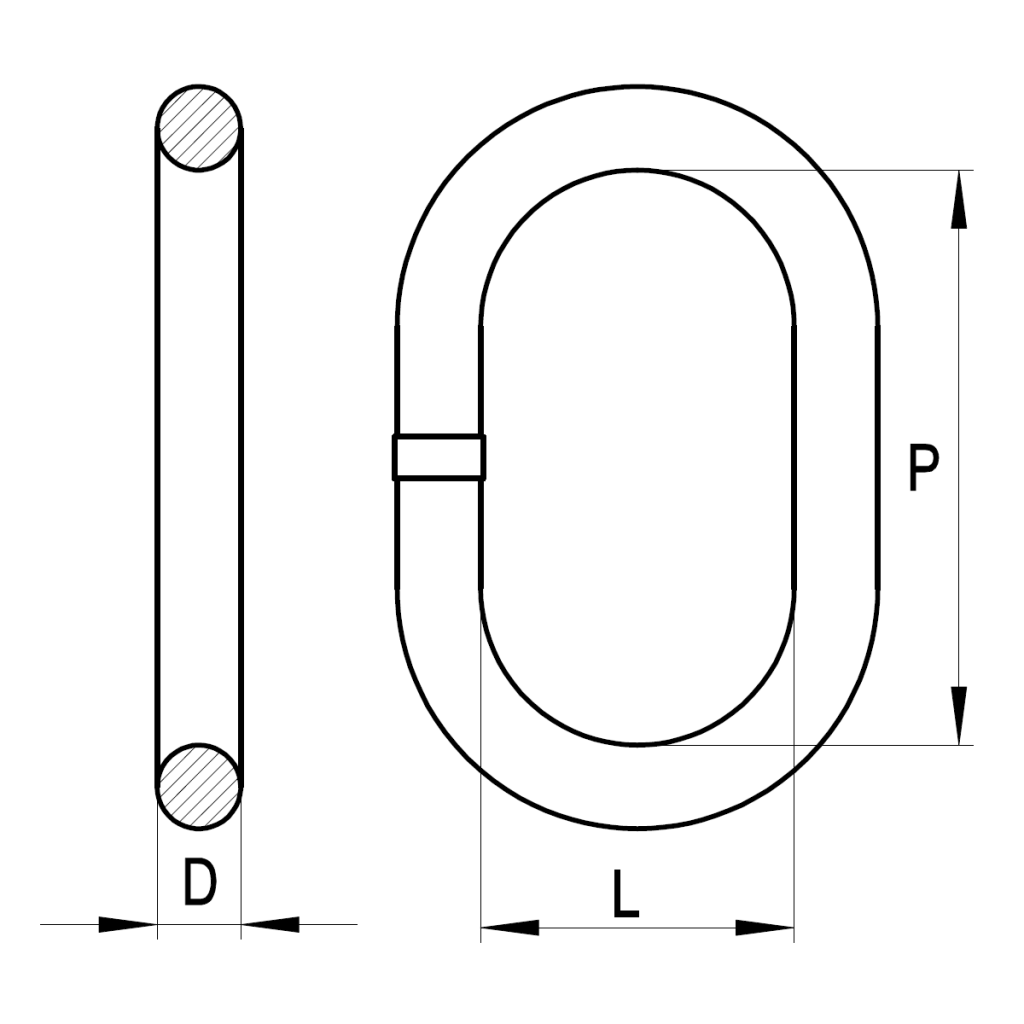

    1 leg 2 legs D P L
L13 6-7-8-10 6-7 13 60 38 0,21 4
L16 13 8 16 70 34 0,36 6,7
L20 16 10 19 85 40 0,65 10
L22 19 13 23 115 50 1,17 14
L26 20-22 16 27 140 65 1,97 19
L32 26 19-20 33 150 70 3,25 26,5
L36 - 22 36 170 75 4,3 31
L40 32 26 40 170 80 5,5 40
L50 - 32 50 200 100 10,35 56

*WLL for Master link only; for WLL of chain slings please refer to the document.
